Smart Electric Pallet Stacker
Smart Electric Pallet Stacker
An Electric or manual convertible pallet Stacker, An Intelligent Smart and cost-effective solution for various applications, optimal for indoor lifting and stacking
Benefits of Stacker
✓ A Stacker is an economical and ergonomic tool used to handle standard size pallets
✓ It provides a simple, easy way to lift, lower and transport heavy loads with minimum effort
✓ Maximum lifting capacity up to 1500kg and maximum lifting height up to 5800mm
✓ Available in manual hydraulic, semi-electric and fully electric models
✓ It is an ideal solution in warehouse and sales floor, to load or unload trucks, or stock shelves
Detail
Emergency Stop Switch/Key switch Ingetrated Design
Lift up/Press down to turn on/off; Screw offto keep the key
I-Touch System Handle Approach
Digital display of milage; Battery discharge indicator; Adjustable driving speed; Approximate load weight; Asimple touch for VNA mode
Strong C Hot Rolled Forklift Profile Solid and durable;
Different lifting height available (1.6/2.5/3.0/3.3m); Travel speed will be automatically reduced after fork lifting 650mm
Charger Pocket
Flexible location for thecharger, either put inside thetruck pocket, or put separately in a charger station
Portable Lithium Battery
Safe, Fast charging, Green; Maintenance free and Reliability; Quick change battery pack for continuous operation
Hybrid Driving Unit
Brushless motor, Maintenance free; Electric/Manual driving convertible; Higher efficiency and better performance; No downtime
Compact and Reliable Structure
With turning radius of only 1436mm; Maximum maneuverability
Key Components Module Design
Easy access to battery, motor, brake system, hydaulic tank, Minimum miantenance and labor cost Wheels, Chassis

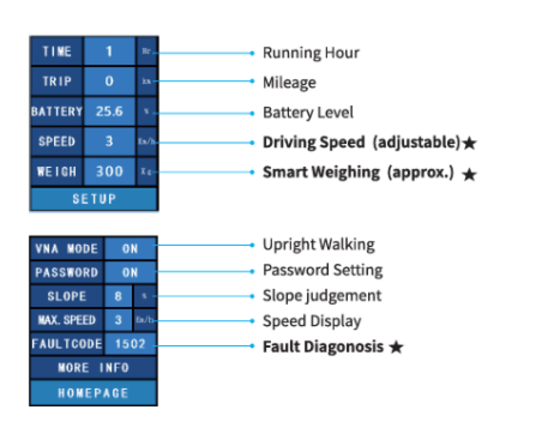

I-Touch System Handle

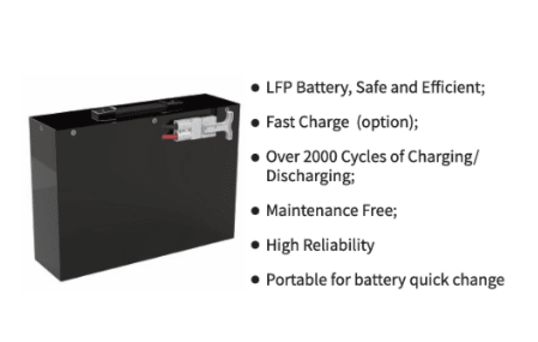

Portable Lithium Battery
COMPONENT
CHARACTERISTICS TABLE
|
Manufacturer
|
|
Microlift
|
|
Model
|
|
TS15i
|
|
Operate Type
|
|
Pedestrian
|
|
Load Capacity
|
Q
|
1500kg
|
|
Load Center
|
C
|
500mm
|
|
Wheelbase
|
Y
|
1277mm
|
WHEEL AND CHASIS TABLE
|
Tyre Type
|
|
PU
|
|
Tyre Size, Drive Wheels
|
|
180x53mm
|
|
Tyre Size, Load Wheels
|
|
80x60mm
|
|
Tyre Size, Balance Wheels
|
|
180x50mm
|
|
Wheels, Numbers (x=drive wheel)
|
|
1x+1/4
|
PERFORMANCE TABLE
|
Travel Speed, Laden/Unladen
|
|
4/4.5 km/h
|
|
Lifting Speed, Laden/Unladen
|
|
0.08/0.10 m/s
|
|
Lowering Speed, Laden/Unladen
|
|
0.10/0.11 m/s
|
|
Max Gradeability, Laden/Unladen
|
%
|
8.0/16.0
|
OTHERS TABLE
|
Controller Manufacturer
|
|
Microlift
|
|
Service Brake
|
|
Regenerating
|
|
Parking Brake
|
|
Electromegnetic
|
WEIGHT TABLE
|
Service weight (Inc Battery)
|
Q
|
330/405/415/425kg
|
DIMENSIONS TABLE
|
Height, Mast lowered
|
h1
|
2155/1905/2155/2305mm
|
|
Free Lift
|
h2
|
/
|
|
Lift Height
|
h3
|
1600/2500/3000/3300mm
|
|
Height, Mast Extended
|
h4
|
2224/3124/3624/3924mm
|
|
Heightoftiller arm, Min/Max
|
h14
|
573-1263mm
|
|
Fork Height, Lowered
|
h13
|
90mm
|
|
Overall Length
|
\1
|
1665mm
|
|
Overall Width
|
bl
|
745mm
|
|
Fork Dimension
|
Ve/s
|
1150x160x53mm
|
|
Outside Fork Width
|
b5
|
560mm
|
|
Ground Clearance
|
m2
|
35mm
|
|
AST, 1000X1200 pallet crossways
|
astl
|
1964mm
|
|
AST, 800X1200 pallet crossways
|
ast2
|
1918mm
|
|
Outer Turning Radius
|
wa
|
1436mm
|
DRIVE TABLE
|
Drive Motor Rating S2 60Min
|
kw
|
0.75AC
|
|
Lifting MotorRating S3 15%
|
kw
|
1.2KW
|
|
Battery Voltage/Capacity (5h)
|
V/Ah
|
48/20 Li-lon
|
